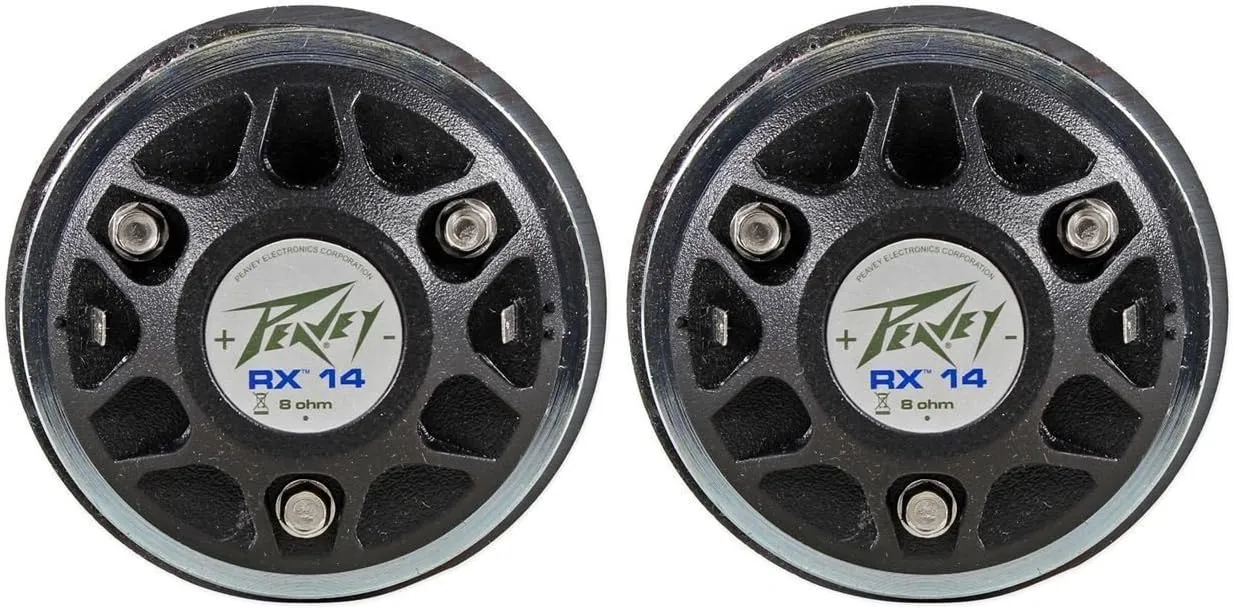

- Peavey RX14 1.4" High Frequency Drivers, Throat Parameter: .938" / 23.8 mm, Nominal Impedance: 8 Ohms, Minimum Impedance: 7.1 Ohms, DC Resistance: 6.8 Ohms,
- Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous, Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn, Nominal Efficiency: 30%, Frequency Response: 1.5 kHz to 20 kHz, Recommended Crossover: 1,800 Hz at 12 dB / Octave,
- Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave, Diaphragm: Commercially pure titanium, Voice Coil Diameter: 1.4" / 34.4 mm, Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin, Flux Density: 11,500 gauss (1.15T),
- Dimensions: 3.54" (90 mm) diameter 2.40" (61 mm) depth, Horn Coupling Diameter: .938" (23.8 mm), Horn Coupling Threads: Standard 1 3/8" / 18", Net Weight: 33.6 oz. Shipping Weight: 38 oz. Voice Coil Cooling: Ferrofluid,
- Weight Unpacked: 2.26 lb(1.024 kg), Weight Packed: 2.26 lb(1.024 kg), Width Packed: 4.25"(10.795 cm), Height Packed: 4.25"(10.795 cm), Depth Packed: 3.25"(8.255 cm)
Peavey RX14 1.4" High Frequency Drivers, Throat Parameter: .938" / 23.8 mm, Nominal Impedance: 8 Ohms, Minimum Impedance: 7.1 Ohms, DC Resistance: 6.8 Ohms, Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous, Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn, Nominal Efficiency: 30%, Frequency Response: 1.5 kHz to 20 kHz, Recommended Crossover: 1,800 Hz at 12 dB / Octave, Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave, Diaphragm: Commercially pure titanium, Voice Coil Diameter: 1.4" / 34.4 mm, Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin, Flux Density: 11,500 gauss (1.15T),
